Conductor ACSR, Conductor de aluminio acero reforzado

VISIÓN DE CONJUNTO ESPECIFICACIONES

CONSTRUCCIÓN PARÁMETRO

VISIÓN DE CONJUNTO

DESCRIPCIÓN

Una capa exterior de aluminio o conductor de aluminio trenzado concéntricamente sobre el núcleo central de alambres de acero galvanizados sólidos o trenzados para formar un conductor reforzado con acero de aluminio.

APLICACIÓN

Conductores ACSR se utilizan ampliamente para la transmisión de energía eléctrica a largas distancias, ya que son ideales para tramos largos de líneas aéreas. También se utilizan como mensajero para soportar cables eléctricos aéreos.

ESTÁNDAR

BS EN 50182, IEC 61089, ASTM B 232/B 232M, AS 3607, GB/T 1179, BS 215-2, DIN48204

DESCARGAR
HOJA DE DATOS DEL CABLE

N/A

BS EN 50182, IEC 61089, ASTM B 232/B 232M, AS 3607, GB/T 1179, BS 215-2, DIN48204, GOST 839

LÍNEA DE TRANSMISIÓN
NÚCLEO NEUTRO

N/A

ESPECIFICACIONES

RENDIMIENTO ELÉCTRICO

N/A

ESTÁNDAR

BS EN 50182, IEC 61089, ASTM B 232/B 232M, AS 3607, GB/T 1179, BS 215-2, DIN48204, GOST 839

APLICACIÓN

LÍNEA DE TRANSMISIÓN
NÚCLEO NEUTRO

IDENTIFICACIÓN DEL NÚCLEO

N/A

DESEMPEÑO QUÍMICO

N/A

RENDIMIENTO MECANICO

CONSULTE LAS NORMAS RELATIVAS

RENDIMIENTO DE FUEGO

N/A

RENDIMIENTO TERMINAL

N/A

OTRAS PROPIEDADES

APROBACIONES

N/A

CONDICIONES DE INSTALACION

AIRE LIBRE

MARCADO DE CABLES

N/A

EMBALAJE

DE MADERA O ACERO-MADERA O CARRETE DE ACERO COMPLETO/TAMBOR

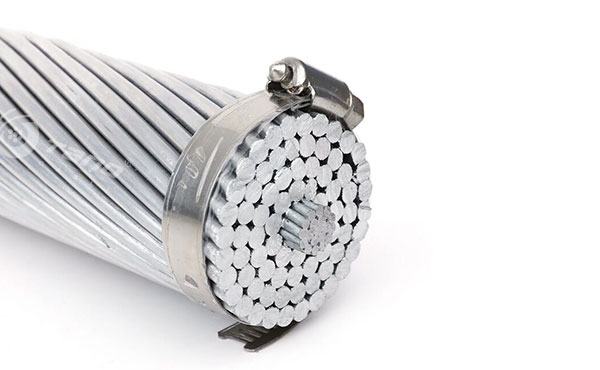

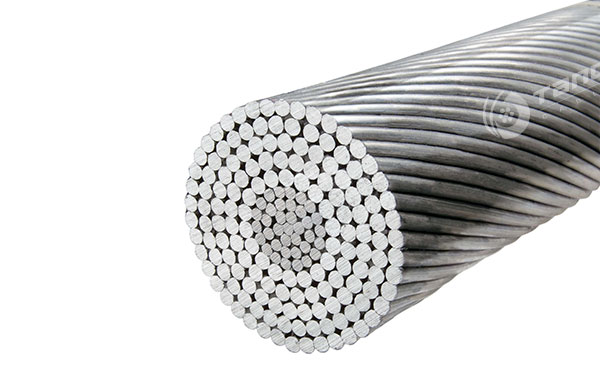

CONSTRUCCIÓN

1. Conductor

1)Capa exterior: Alambre de aluminio dibujado duro
2)Centro: Alambre de acero galvanizado

Generalmente, el conductor ACSR está formado por la siguiente construcción:

PARÁMETRO

BS 215 Part 2

BS EN 50182

IEC 61089

ASTM B 232/B 232M

DIN 48204

GB/T 1179

AS 3607

GOST 839

Nombre Código	Área Nominal	No.& Diámetro de Alambre		Aprox. Diámetro Total	Área Seccional			Aprox. Peso	Carga de Rotura Nominal	Max. Resistencia DC a 20 ° C


		Aluminio	Acero		Aluminio	Acero	Total
	mm2	No./mm	No./mm	mm	mm2	mm2	mm2	kg/km	kN	Ω/km
Gopher	25	6/2.36	1/2.36	7.08	26.24	4.38	30.62	106	9.61	1.093
Weasel	30	6/2.59	1/2.59	7.77	31.61	5.27	36.88	128	11.45	0.9077
Ferret	40	6/3.00	1/3.00	9.00	42.41	7.07	49.48	172	15.2	0.6766
Rabbit	50	6/3.35	1/3.35	10.05	52.88	8.82	61.7	214	18.35	0.5426
Horse	70	12/2.79	7/2.79	13.95	73.37	42.83	116.2	538	61.2	0.3936
Dog	100	6/4.72	7/1.57	14.15	105.0	13.5	118.5	394	32.7	0.2733
Dingo	150	18/3.35	1/3.35	16.75	158.7	8.8	167.5	506	35.7	0.1815
Wolf	150	30/2.59	7/2.59	18.13	158.1	36.8	194.9	726	69.2	0.1828
Lynex	175	30/2.79	7/2.79	19.53	183.4	42.8	226.2	842	79.8	0.1576
Caracal	175	18/3.61	1/3.61	18.05	184.3	10.2	194.5	587	41.1	0.1563
Panther	200	30/3.00	7/3.00	21.00	212.1	49.4	261.5	974	92.25	0.1363
Jaguar	200	18/3.86	1/3.86	19.30	210.6	11.7	222.3	671	46.55	0.1367
Zebra	400	54/3.18	7/3.18	28.62	428.9	55.6	484.5	1621	131.9	0.0674

Expand More

Nombre Código	No.& Diámetro de Alambre		Aprox. Diámetro Total	Área Seccional			Aprox. Peso	Carga de Rotura Nominal	Max. Resistencia DC a 20 ° C


	Aluminio	Acero		Aluminio	Acero	Total
	No./mm	No./mm	mm	mm2	mm2	mm2	kg/km	kN	Ω/km
Mole	6/1.50	1/1.50	4.50	10.6	1.77	12.4	42.8	4.14	2.7027
Squirrel	6/2.11	1/2.11	6.33	21.0	3.5	24.5	84.7	7.87	1.3659
Fox	6/2.79	1/2.79	8.37	36.7	6.11	42.8	148.1	13.21	0.7812
Mink	6/3.66	1/3.66	10.98	63.1	10.5	73.6	254.9	21.67	0.4540
Skunk	12/2.59	7/2.59	12.95	63.2	36.9	100.1	463.0	52.79	0.4568
Beaver	6/3.99	1/3.99	11.97	75.0	12.5	87.5	302.9	25.76	0.3820
Racoon	6/4.09	1/4.09	12.27	78.8	13.1	91.9	318.3	27.06	0.3635
Otter	6/4.22	1/4.22	12.66	83.9	14	97.9	338.8	28.81	0.3415
Cat	6/4.50	1/4.50	13.50	95.4	15.9	111.3	385.3	32.76	0.3003
Hare	6/4.72	1/4.72	14.16	105.0	17.5	122.5	423.8	36.04	0.2730
Coyote	26/2.54	7/1.91	15.89	131.7	20.1	151.8	520.7	45.86	0.2192
Cougar	18/3.05	1/3.05	15.25	131.5	7.31	138.8	418.8	29.74	0.2188
Tiger	30/2.36	7/2.36	16.52	131.2	30.6	161.8	602.2	57.87	0.2202
Lion	30/3.18	7/3.18	22.26	238.3	55.6	293.9	1093.4	100.47	0.1213
Bear	30/3.35	7/3.35	23.45	264.4	61.7	326.1	1213.4	111.50	0.1093
Goat	30/3.71	7/3.71	25.97	324.3	75.7	400.0	1488.2	135.13	0.0891
Sheep	30/3.99	7/3.99	27.93	375.1	87.5	462.6	1721.3	156.30	0.0771
Antelope	54/2.97	7/2.97	26.73	374.1	48.5	422.6	1413.8	118.88	0.0773
Bison	54/3.00	7/3.00	27.00	381.7	49.5	431.2	1442.5	121.30	0.0758
Deer	30/4.27	7/4.27	29.89	429.6	100.2	529.8	1971.4	179.00	0.0673
Elk	30/4.50	7/4.50	31.50	477.1	111.3	588.4	2189.5	198.80	0.0606
Camel	54/3.35	7/3.35	30.15	476.0	61.7	537.7	1798.8	146.40	0.0608
Moose	54/3.53	7/3.53	31.77	528.5	68.5	597.0	1997.3	159.92	0.0547

Expand More

Nombre Código	Área Nominal			No.& Diámetro de Alambre		Aprox. Diámetro Total	Aprox. Peso	Carga de Rotura Nominal	Max. Resistencia DC a 20 ° C



	Aluminio	Acero	Total	Aluminio	Acero
	mm2	mm2	mm2	No./mm	No./mm	mm	kg/km	kN	Ω/km
16	16	2.67	18.7	6/1.84	1/1.84	5.52	64.6	6.08	1.7934
25	25	4.17	29.2	6/2.30	1/2.30	6.9	100.9	9.13	1.1478
40	40	6.67	46.7	6/2.91	1/2.91	8.73	161.5	14.4	0.7174
63	63	10.5	73.5	6/3.66	1/3.66	10.98	254.4	21.63	0.4555
100	100	16.7	117	6/4.61	1/4.61	13.83	403.8	34.33	0.2869
125	125	6.94	132	18/2.97	1/2.97	14.85	397.9	29.17	0.2304
125	125	20.4	145	26/2.47	7/1.92	15.64	503.9	45.69	0.2310
160	160	8.89	169	18/3.36	1/3.36	16.8	509.3	36.18	0.1800
160	160	26.1	186	26/2.80	7/2.18	17.74	644.9	57.69	0.1805
200	200	11.1	211	18/3.76	1/3.76	18.8	636.7	44.22	0.1440
200	200	32.6	233	26/3.13	7/2.43	19.81	806.2	70.13	0.1444
250	250	24.6	275	22/3.80	7/2.11	21.53	880.6	68.72	0.1154
250	250	40.7	291	26/3.50	7/2.72	22.16	1007.7	87.67	0.1155
315	315	21.8	337	45/2.99	7/1.99	23.91	1039.6	79.03	0.0917
315	315	51.3	366	26/3.93	7/3.05	24.87	1269.7	106.83	0.0917
400	400	27.7	428	45/3.36	7/2.24	26.88	1320.1	98.36	0.0722
400	400	51.9	452	54/3.07	7/3.07	27.63	1510.3	123.04	0.0723
450	450	31.1	481	45/3.57	7/2.38	28.56	1485.2	107.47	0.0642
450	450	58.3	508	54/3.26	7/3.26	29.34	1699.1	138.42	0.0643
500	500	34.6	535	45/3.76	7/2.51	30.09	1650.2	119.41	0.0578
500	500	64.8	565	54/3.43	7/3.43	30.87	1887.9	153.8	0.0578
560	560	38.7	599	45/3.98	7/2.65	31.83	1848.2	133.74	0.0516
560	560	70.9	631	54/3.63	19/2.18	32.68	2103.4	172.59	0.0516
630	630	43.6	674	45/4.22	7/2.81	33.75	2079.2	150.45	0.0459
630	630	79.8	710	54/3.85	19/2.31	34.65	2366.3	191.77	0.0459
710	710	49.1	759	45/4.48	7/2.99	35.85	2343.2	169.56	0.0407
710	710	89.9	800	54/4.09	19/2.45	36.79	2666.8	216.12	0.0407
800	800	34.6	835	72/3.76	7/2.51	37.61	2480.2	167.41	0.0361
800	800	66.7	867	84/3.48	7/3.48	38.28	2732.7	205.33	0.0362
800	800	101	901	54/4.34	19/2.61	39.09	3004.9	243.52	0.0362
900	900	38.9	939	72/3.99	7/2.66	39.9	2790.2	188.33	0.0321
900	900	75	975	84/3.69	7/3.69	40.59	3074.2	226.5	0.0322
1000	1000	43.2	1043	72/4.21	7/2.80	42.08	3100.3	209.26	0.0289
1120	1120	47.3	1167	72/4.45	19/1.78	44.5	3464.9	234.53	0.0258
1120	1120	91.2	1211	84/4.12	19/2.47	45.31	3811.5	283.17	0.0258
1250	1250	102	1352	84/4.35	19/2.61	47.85	4253.9	316.04	0.0232
1250	1250	52.8	1303	72/4.70	19/1.88	47	3867.1	261.75	0.0231

Expand More

Nombre Código	Área Nominal			No.& Diámetro de Alambre		Aprox. Diámetro Total	Aprox. Peso	Carga de Rotura Nominal	Max. Resistencia DC a 20 ° C



	Aluminio	Acero	Total	Aluminio	Acero
	mm2	mm2	mm2	No./mm	No./mm	mm	kg/km	kN	Ω/km
Turkey	13.3	2.22	15.52	6/1.68	1/1.68	5.04	53.6	4.98	2.1499
Swan	21.18	3.53	24.71	6/2.12	1/2.12	6.36	85.3	7.83	1.3501
Swanate	21.12	5.35	26.47	7/1.96	1/2.61	6.53	99.6	9.79	1.3539
Sparrow	33.59	5.6	39.19	6/2.67	1/2.67	8.01	135.7	11.92	0.8512
Sparate	33.54	8.55	42.09	7/2.47	1/3.30	8.24	158.7	15.08	0.8525
Robin	42.41	7.07	49.48	6/3.00	1/3.00	9.00	171.1	14.86	0.6742
Raven	53.52	8.92	62.44	6/3.37	1/3.37	10.11	216.1	18.33	0.5343
Quail	67.33	11.22	78.55	6/3.78	1/3.78	11.34	272	22.46	0.4247
Pigeon	85.12	14.19	99.31	6/4.25	1/4.25	12.75	343	28.02	0.3359
Penguin	107.22	17.87	125.09	6/4.77	1/4.77	14.31	432.7	35.36	0.2667
Waxwing	134.98	7.5	142.48	18/3.09	1/3.09	15.45	430.2	29.80	0.2129
Partridge	134.87	21.99	156.86	26/2.57	7/2.00	16.28	545.9	47.15	0.2141
Ostrich	152.19	24.71	176.9	26/2.73	7/2.12	17.28	613.4	53.38	0.1897
Merlin	170.22	9.46	179.68	18/3.47	1/3.47	17.35	542.8	37.36	0.1688
Linnet	170.55	27.83	198.38	26/2.89	7/2.25	18.31	687.5	59.16	0.1693
Oriole	170.5	39.78	210.28	30/2.69	7/2.69	18.83	783.3	72.06	0.1698
Chickadee	200.93	11.16	212.09	18/3.77	1/3.77	18.85	641.3	43.15	0.1430
Brant	201.56	26.13	227.69	24/3.27	7/2.18	19.62	761	61.83	0.1433
Ibis	201.34	32.73	234.07	26/3.14	7/2.44	19.88	812.4	68.05	0.1434
Lark	200.9	46.88	247.78	30/2.92	7/2.92	20.44	925.2	84.07	0.1441
Pelican	242.31	13.46	255.77	18/4.14	1/4.14	20.70	769.7	51.15	0.1186
Flicker	241.58	31.4	272.98	24/3.58	7/2.39	21.49	913.5	72.06	0.1195
Hawk	241.65	39.19	280.84	26/3.44	7/2.67	21.77	975.1	81.84	0.1195
Hen	241.27	56.3	297.57	30/3.20	7/3.20	22.40	1110.6	98.30	0.1200
Osprey	282.47	15.69	298.16	18/4.47	1/4.47	22.35	897.7	59.60	0.1017
Parakeet	282.31	36.6	318.91	24/3.87	7/2.58	23.22	1065.6	83.18	0.1023
Dove	282.59	45.92	328.51	26/3.72	7/2.89	23.55	1138.6	94.30	0.1022
Eagle	282.07	65.82	347.89	30/3.46	7/3.46	24.22	1295.6	114.76	0.1026
Peacock	306.13	39.78	345.91	24/4.03	7/2.69	24.19	1158.9	90.74	0.0943
Squab	305.83	49.81	355.64	26/3.87	7/3.01	24.51	1237	101.41	0.0944
Wood Duck	307.06	71.65	378.71	30/3.61	7/3.61	25.27	1408.4	121.43	0.0943
Teal	307.06	69.62	376.68	30/3.61	19/2.16	25.24	1396.6	124.54	0.0943
Kingbird	323.01	17.95	340.96	18/4.78	1/4.78	23.90	1026.6	68.05	0.0890
Swift	323.02	8.97	331.99	36/3.38	1/3.38	23.66	956.5	60.05	0.0890
Rook	323.07	41.88	364.95	24/4.14	7/2.76	24.84	1217.5	95.19	0.0894
Grosbeak	321.84	52.49	374.33	26/3.97	7/3.09	25.15	1300.8	104.97	0.0897
Scoter	322.56	75.26	397.82	30/3.70	7/3.70	25.90	1480.7	127.66	0.0897
Egret	322.56	73.54	396.1	30/3.70	19/2.22	25.90	1469	130.77	0.0897
Flamingo	337.27	43.72	380.99	24/4.23	7/2.82	25.38	1276.6	99.64	0.0856
Gannet	338.26	54.9	393.16	26/4.07	7/3.16	25.76	1363.3	110.31	0.0854
Stilt	363.27	46.88	410.15	24/4.39	7/2.92	26.32	1370.4	107.20	0.0795
Starling	361.93	59.15	421.08	26/4.21	7/3.28	26.68	1463.7	118.32	0.0798
Redwing	362.06	82.41	444.47	30/3.92	19/2.35	27.43	1650.6	143.23	0.0799
Coot	401.86	11.16	413.02	36/3.77	1/3.77	26.39	1195.8	73.39	0.0715
Tern	403.77	27.83	431.6	45/3.38	7/2.25	27.03	1331.8	94.30	0.0715
Condor	402.33	52.15	454.48	54/3.08	7/3.08	27.72	1520.7	118.32	0.0718
Cuckoo	402.33	52.15	454.48	24/4.62	7/3.08	27.72	1522.2	117.43	0.0718
Drake	402.56	65.44	468	26/4.44	7/3.45	28.11	1626.4	131.66	0.0717
Mallard	403.84	91.78	495.62	30/4.14	19/2.48	28.96	1836	159.24	0.0717
Ruddy	455.5	31.67	487.17	45/3.59	7/2.40	28.74	1507.3	104.53	0.0634
Canary	456.28	59.15	515.43	54/3.28	7/3.28	29.52	1723.1	134.33	0.0633
Catbird	484.61	13.46	498.07	36/4.14	1/4.14	28.98	1434.4	86.74	0.0593
Rail	483.84	33.54	517.38	45/3.70	7/2.47	29.61	1598.1	110.76	0.0597
Cardinal	484.53	62.81	547.34	54/3.38	7/3.38	30.42	1825.9	142.34	0.0596
Tanager	522.79	14.52	537.31	36/4.30	1/4.30	30.10	1553.5	93.85	0.0550
Orotlan	523.87	36.31	560.18	45/3.85	7/2.57	30.81	1730.5	118.32	0.0551
Curlew	522.51	67.73	590.24	54/3.51	7/3.51	31.59	1977.6	153.90	0.0553
Bluejay	565.49	38.9	604.39	45/4.00	7/2.66	31.98	1866	127.66	0.0511
Finch	565.03	71.57	636.6	54/3.65	19/2.19	32.85	2127.8	164.58	0.0514
Bunting	605.76	41.88	647.64	45/4.14	7/2.76	33.12	1996.9	136.55	0.0477
Grackle	602.79	76.89	679.68	54/3.77	19/2.27	33.97	2278.1	176.59	0.0481
Skylark	646.02	17.95	663.97	36/4.78	1/4.78	33.46	1913.6	115.65	0.0445
Bittern	644.4	44.66	689.06	45/4.27	7/2.85	34.17	2130.8	145.89	0.0448
Pheasant	645.08	81.71	726.79	54/3.90	19/2.34	35.10	2431.4	183.26	0.0450
Dipper	684.24	47.2	731.44	45/4.40	7/2.93	35.19	2263.2	154.79	0.0422
Martin	685.39	86.67	772.06	54/4.02	19/2.41	36.17	2581.7	194.82	0.0423
Bobolink	725.27	50.14	775.41	45/4.53	7/3.02	36.24	2397.2	164.13	0.0398
Plover	726.92	91.78	818.7	54/4.14	19/2.48	37.24	2734.9	206.39	0.0399
Nuthatch	764.2	52.83	817.03	45/4.65	7/3.10	37.20	2529.6	171.25	0.0378
Parrot	766.06	97.03	863.09	54/4.25	19/2.55	38.25	2883.7	217.51	0.0379
Lapwing	807.53	55.6	863.13	45/4.78	7/3.18	38.22	2663.5	180.14	0.0358
Falcon	806.23	102.43	908.66	54/4.36	19/2.62	39.26	3038.5	229.52	0.0360
Chukar	903.18	73.54	976.72	84/3.70	19/2.22	40.70	3083.1	217.51	0.0321
Bluebird	1092.84	88.84	1181.68	84/4.07	19/2.44	44.76	3731.9	256.65	0.0266
Kiwi	1099.76	47.52	1147.28	72/4.41	7/2.94	44.10	3423.9	215.28	0.0264
Thrasher	1171.42	63.94	1235.36	76/4.43	19/2.07	45.79	3754.2	243.75	0.0248
ACSR CON HILOS DE ALTA RESISTENCIA
Grouse	40.54	14.12	54.66	8/2.54	1/4.24	9.32	221.4	21.75	0.7089
Petrel	51.61	30.1	81.71	12/2.34	7/2.34	11.70	377.7	42.08	0.5595
Minorca	56.11	32.73	88.84	12/2.44	7/2.44	12.20	411.1	45.81	0.5146
Leghorn	68.2	39.78	107.98	12/2.69	7/2.69	13.45	499.2	55.16	0.4234
Guinea	80.36	46.88	127.24	12/2.92	7/2.92	14.60	589.7	64.94	0.3593
Dotterel	89.41	52.15	141.56	12/3.08	7/3.08	15.40	656.1	70.28	0.3230
Dorking	96.51	56.3	152.81	12/3.20	7/3.20	16.00	707.8	75.62	0.2992
Cochin	107.04	62.44	169.48	12/3.37	7/3.37	16.85	783.9	84.07	0.2698
Brahma	102.79	91.78	194.57	16/2.86	19/2.48	18.12	1003.8	114.76	0.2809

Expand More

Área de Sección Nominal	Área Seccional			No.& Diámetro de Alambre		Aprox. Diámetro Total	Aprox. Peso	Carga de Rotura Nominal	Max. Resistencia DC a 20 ° C



	Aluminio	Acero	Total	Aluminio	Acero
mm2	mm2	mm2	mm2	No./mm	No./mm	mm	kg/km	kN	Ω/km
16/2.5	15.27	2.54	17.8	6/1.80	1/1.80	5.4	62	5.81	1.8793
25/4	23.86	3.98	27.8	6/2.25	1/2.25	6.8	97	9.02	1.2028
35/6	34.35	5.73	40.1	6/2.70	1/2.70	8.1	140	12.70	0.8353
44/32	43.98	31.67	75.7	14/2.00	7/2.40	11.2	373	45.46	0.6573
50/8	48.25	8.04	56.3	6/3.20	1/3.20	9.6	196	17.18	0.5946
50/30	51.17	29.85	81	12/2.33	7/2.33	11.7	378	44.28	0.5644
70/12	69.89	11.4	81.3	26/1.85	7/1.44	11.7	284	26.31	0.4130
95/15	94.39	15.33	109.7	26/2.15	7/1.67	13.6	383	35.17	0.3058
95/55	96.51	56.3	152.8	12/3.20	7/3.20	16.0	714	80.20	0.2992
105/75	105.67	75.55	181.2	14/3.10	19/2.25	17.5	899	106.69	0.2736
120/20	121.57	19.85	141.4	26/2.44	7/1.90	15.5	494	44.94	0.2374
120/70	122.15	71.25	193.4	12/3.60	7/3.60	18.0	904	98.16	0.2364
125/30	127.92	29.85	157.8	30/2.33	7/2.33	16.3	590	57.86	0.2259
150/25	148.86	24.25	173.1	26/2.70	7/2.10	17.1	604	54.37	0.1939
170/40	171.77	40.08	211.9	30/2.70	7/2.70	18.9	794	77.01	0.1682
185/30	183.78	29.85	213.6	26/3.00	7/2.33	19.0	744	66.28	0.1571
210/35	209.1	34.09	243.2	26/3.20	7/2.49	20.3	848	74.94	0.1380
210/50	212.06	49.48	261.5	30/3.00	7/3.00	21.0	979	92.25	0.1363
230/30	230.91	29.85	260.8	24/3.50	7/2.33	21.0	874	73.09	0.1249
240/40	243.05	39.49	282.5	26/3.45	7/2.68	21.8	985	86.46	0.1188
265/35	263.66	34.09	297.8	24/3.74	7/2.49	22.4	998	82.94	0.1094
300/50	304.26	49.48	353.7	26/3.86	7/3.00	24.5	1233	105.09	0.0949
305/40	304.62	39.49	344.1	54/2.68	7/2.68	24.1	1155	99.30	0.0949
340/30	339.29	29.85	369.1	48/3.00	7/2.33	25.0	1174	92.56	0.0851
380/50	381.7	49.48	431.2	54/3.00	7/3.00	27.0	1448	120.91	0.0757
385/35	386.04	34.09	420.1	48/3.20	7/2.49	26.7	1336	104.31	0.0748
435/55	434.29	56.3	490.6	54/3.20	7/3.20	28.8	1647	136.27	0.0666
450/40	448.71	39.49	488.2	48/3.45	7/2.68	28.7	1553	120.19	0.0644
490/65	490.28	63.55	553.8	54/3.40	7/3.40	30.6	1860	152.85	0.0590
495/35	494.4	34.1	528.5	45/3.74	7/2.49	29.9	1636	122.72	0.0584
510/45	510.5	45.3	555.8	48/3.68	7/2.87	30.7	1770	137.02	0.0566
550/70	549.65	71.25	620.9	54/3.60	7/3.60	32.4	2085	167.42	0.0526
560/50	561.7	49.48	611.2	48/3.86	7/3.00	32.2	1943	146.28	0.0514
570/40	571.2	39.5	610.7	45/4.02	7/2.68	32.2	1889	140.74	0.0506
650/45	653.5	45.3	698.8	45/4.30	7/2.87	34.4	2163	158.63	0.0442
680/85	678.58	85.95	764.5	54/4.00	19/2.40	36.0	2564	209.99	0.0426
1045/45	1045.6	45.3	1090.9	72/4.30	7/2.87	43.0	3249	222.23	0.0277

Expand More

Área de Sección Nominal	Área			No.& Diámetro de Alambre		Aprox. Diámetro Total	Aprox. Peso	Carga de Rotura Nominal	Max. Resistencia DC a 20 ° C
	Área			No.& Diámetro de Alambre
	Aluminio	Acero	Total	Aluminio	Acero
mm2	mm2	mm2	mm2	No./mm	No./mm	mm	kg/km	kN	Ω/km
10/2	10.60	1.77	12.37	6/1.50	1/1.50	4.50	42.8	4.14	2.7062
16/3	16.13	2.69	18.82	6/1.85	1/1.85	5.55	65.1	6.13	1.7791
35/6	34.86	5.81	40.67	6/2.72	1/2.72	8.16	140.8	12.55	0.8230
50/8	48.25	8.04	56.30	6/3.20	1/3.20	9.60	194.8	16.81	0.5946
50/30	50.73	29.59	80.32	12/2.32	7/2.32	11.6	371.1	42.61	0.5693
70/10	68.05	11.34	79.39	6/3.80	1/3.80	11.4	274.8	23.36	0.4217
70/40	69.73	40.67	110.40	12/2.72	7/2.72	13.6	510.2	58.22	0.4141
95/15	94.39	15.33	109.73	26/2.15	7/2.15	13.6	380.2	34.93	0.3050
95/20	95.14	18.82	113.96	7/4.16	7/4.16	13.9	408.2	37.24	0.3020
95/55	96.51	56.30	152.81	12/3.20	7/3.20	16.0	706.1	77.85	0.2992
120/7	118.89	6.61	125.50	18/2.90	1/2.90	14.5	378.5	27.74	0.2422
120/20	115.67	18.82	134.49	26/2.38	7/2.38	15.1	466.1	42.26	0.2496
120/25	122.48	24.25	146.73	7/4.72	7/4.72	15.7	525.7	47.96	0.2346
120/70	122.15	71.25	193.40	12/3.60	7/3.60	18.0	893.7	97.92	0.2364
150/8	144.76	8.04	152.80	18/3.20	1/3.20	16.0	460.9	32.73	0.1990
150/20	145.68	18.82	164.50	24/2.78	7/1.85	16.7	548.5	46.78	0.1981
150/25	148.86	24.25	173.11	26/2.70	7/2.15	17.1	600.1	53.67	0.1940
150/35	147.26	34.36	181.62	30/2.50	7/2.50	17.5	675	64.94	0.1962
185/10	183.22	10.18	193.40	18/3.60	1/3.60	18.0	583.3	40.51	0.1572
185/25	187.03	24.25	211.28	24/3.15	7/2.10	18.9	704.9	59.23	0.1543
185/30	181.34	29.59	210.93	26/2.98	7/2.32	18.9	731.4	64.56	0.1592
185/45	184.73	43.10	227.83	30/2.80	7/2.80	19.6	846.7	80.54	0.1564
210/10	204.14	11.34	215.48	18/3.80	1/3.80	19.0	649.9	45.14	0.1411
210/25	209.02	27.10	236.12	24/3.33	7/2.22	20.0	787.8	66.19	0.1380
210/35	211.73	34.36	246.09	26/3.22	7/2.50	20.4	852.5	74.11	0.1364
210/50	209.24	48.82	258.06	30/2.98	7/2.98	20.9	959	91.23	0.1381
240/30	244.29	31.67	275.96	24/3.60	7/2.40	21.6	920.7	75.19	0.1181
240/40	238.84	38.90	277.74	26/3.42	7/2.66	21.7	962.8	83.76	0.1209
240/55	241.27	56.30	297.57	30/3.20	7/3.20	22.4	1105.8	101.74	0.1198
300/15	296.88	15.33	312.21	42/3.00	7/1.67	23.0	938.7	68.41	0.0973
300/20	303.42	20.91	324.32	45/2.93	7/1.95	23.4	1000.8	76.04	0.0952
300/25	306.21	27.10	333.31	48/2.85	7/2.22	23.8	1057	83.76	0.0944
300/40	300.09	38.90	338.99	24/3.99	7/2.66	23.9	1131	92.36	0.0961
300/50	299.54	48.82	348.37	26/3.83	7/2.98	24.3	1207.7	103.58	0.0964
300/70	305.36	71.25	376.61	30/3.60	7/3.60	25.2	1399.6	127.23	0.0946
400/20	406.40	20.91	427.31	42/3.51	7/1.95	26.9	1284.3	89.48	0.0710
400/25	391.91	27.10	419.01	45/3.33	7/2.22	26.6	1293.5	96.37	0.0737
400/35	390.88	34.36	425.24	48/3.22	7/2.50	26.8	1347.5	103.67	0.0739
400/65	398.94	65.06	464.00	26/4.42	7/3.44	28.0	1608.7	135.39	0.0724
400/95	407.75	93.27	501.02	30/4.16	19/2.50	29.1	1856.7	171.56	0.0709
500/45	488.58	43.10	531.68	48/3.60	7/2.80	30.0	1685.5	127.31	0.0591
630/55	639.92	56.30	696.22	48/4.12	7/3.20	34.3	2206.4	164.31	0.0452
800/55	814.30	56.30	870.60	45/4.80	7/3.20	38.4	2687.5	192.22	0.0355
800/70	808.15	71.25	879.40	48/4.63	7/3.60	38.6	2887.6	207.68	0.0358

Expand More

Nombre Código	No.& Diámetro de Alambre		Aprox. Diámetro Total	Área Seccional	Aprox. Peso	Carga de Rotura Nominal	Max. Resistencia DC a 20 ° C
	No.& Diámetro de Alambre
	Aluminio	Acero
	No./mm	No./mm	mm	mm2	kg/km	kN	Ω/km
Almond	6/2.50	1/2.50	7.5	34.4	119	10.5	0.9750
Apricot	6/2.75	1/2.75	8.3	41.6	144	12.6	0.8050
Apple	6/3.00	1/3.00	9.0	49.5	171	14.9	0.6770
Banana	6/3.75	1/3.75	11.3	77.3	268	22.7	0.4330
Cherry	6/4.75	7/1.60	14.3	120.0	402	33.4	0.2710
Grape	30/2.50	7/2.50	17.5	182.0	677	63.5	0.1960
Lemon	30/3.00	7/3.00	21.0	262.0	973	90.4	0.1360
Lychee	30/3.25	7/3.25	22.8	307.0	1140	105.0	0.1160
Lime	30/3.50	7/3.50	24.5	356.0	1320	122.0	0.1000
Mango	54/3.00	7/3.00	27.0	431.0	1440	119.0	0.0758
Orange	54/3.25	7/3.25	29.3	506.0	1690	137.0	0.0646
Olive	54/3.50	7/3.50	31.5	587.0	1960	159.0	0.0557
Pawpaw	54/3.75	19/2.25	33.8	672.0	2240	178.0	0.0485
Quince	3/1.75	4/1.75	5.3	16.8	95	12.7	3.2500
Raisin	3/2.50	4/2.50	7.5	34.4	195	24.4	1.5900
Sultana	4/3.00	3/3.00	9.0	49.5	243	28.3	0.8970
Walnut	4/3.75	3/3.75	11.3	77.3	380	43.9	0.5730

Expand More

Código	Área			Varamiento		Diámetro total	Peso （Aprox.）	Resistencia a 20℃	Rompiendo carga
	Aluminio	Acero	Total	Aluminio	Acero
	mm2	mm2	mm2	No.×mm	No.×mm	mm	Kg/Km	Ω/km	N
10/1.8	10.6	1.77	12.37	6/1.50	1/1.50	4.5	42.7	2.766300	4089
16/2.7	16.1	2.69	18.79	6/1.85	1/1.85	5.6	64.9	1.800934	6220
25/4.2	24.9	4.15	29.05	6/2.30	1/2.30	6.9	100.3	1.175900	9296
35/6.2	36.9	6.155	43.05	6/2.80	1/2.80	8.4	148.0	0.789700	13524
50/8	48.2	8.04	56.24	6/3.20	1/3.20	9.6	195.0	0.602980	17112
70/11	68.0	11.30	79.30	6/3.80	1/3.80	11.4	276.0	0.428590	24130
70/72	68.4	72.20	140.60	18/2.20	19/2.20	15.4	755.0	0.427600	96826
95/16	95.4	15.90	111.30	6/4.50	1/4.50	13.5	385.0	0.305990	33369
95/141	91.2	141.00	232.20	24/2.20	37/2.20	19.8	1357.0	0.321080	180775
120/19	118.0	18.80	136.80	26/2.40	7/1.85	15.2	471.0	0.249170	41521
120/27	114.0	26.60	140.60	30/2.20	7/2.20	15.4	528.0	0.252930	49465
150/19	148.0	18.80	166.80	24/2.80	7/1.85	16.8	554.0	0.199190	46307
150/24	149.0	24.20	173.20	26/2.70	7/2.10	17.1	599.0	0.197980	52279
150/34	147.0	34.30	181.30	30/2.50	7/2.50	17.5	675.0	0.200650	62643
185/24	187.0	24.20	211.20	24/3.15	7/2.10	18.9	705.0	0.157010	58075
185/29	181.0	29.00	210.00	26/2.98	7/2.30	18.8	728.0	0.162180	62055
185/43	185.0	43.10	228.10	30/2.80	7/2.80	19.6	846.0	0.157620	77767
185/128	187.0	128.00	315.00	54/2.10	37/2.10	23.1	1525.0	0.157620	183816
205/27	205.0	26.60	231.60	24/3.30	7/2.20	19.8	774.0	0.142940	63740
240/32	244.0	31.70	275.70	24/3.60	7/2.40	21.6	921.0	0.120600	75050
240/39	236.0	38.60	274.60	26/3.40	7/2.65	21.6	952.0	0.124280	80895
240/56	241.0	56.30	297.30	30/3.20	7/3.20	22.4	1106.0	0.121820	98253
300/39	301.0	38.60	339.60	24/4.00	7/2.65	24.0	1132.0	0.097470	90574
300/48	295.0	47.80	342.80	26/3.80	7/2.95	24.1	1186.0	0.099830	100623
300/66	288.5	65.80	354.30	30/3.50	19/2.10	24.5	1313.0	0.102260	126270
300/67	288.5	67.30	355.80	30/3.50	7/3.50	24.5	1323.0	0.102260	117520
300/204	298.0	204.00	502.00	54/2.65	37/2.65	29.2	2428.0	0.099340	284579
330/30	335.0	29.10	364.10	48/2.98	7/2.30	24.8	1152.0	0..087990	88848

Expand More

CONDUCTOR DE ALUMINIO ACERO REFORZADO (ACSR)
